Electrical Hot Air Circulating Drying Oven machine

FOB Reference Price:Get Latest Price
$2,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Drying Oven
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LINGLING
Model Number:
RXH
Voltage:
380v or 220v or as consumer request
Certification:
ISO 9001 and CE certificate
Dimension(L*W*H):
2260*1200*2000mm
Power(W):
15kw
material:
stainlee steel
Machine Type:
Oven
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
780kg
Warranty:
1 year
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
Compression film packaging or Conventional shipping packaging or According to customers' needs
Port
Shanghai
Lead Time :
10-30 days
Product Description



Illustration:

1.  The temperatures to be used: steam heating 50-150°C, Max.150°C

2.  Electric infrared heating: 50-350
3.  Commonly used steam pressure 0.2-08Mpa(2-8kg/cm2)
4.  If the electrical heating and type one, the calculation is 15kw,and the practical use is 5-8kw/h
5.  The special requirements should be indicated at the time of order.
6. The use temperatures more than 140°Cand less than 60°C, should be inducted at the time of order.
7.  The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchangeable.The baking plate dimensions: 460*640*45mm , heating method: steam, electricity, infrared.



Features:

1. controlling cabinet equipped with button(touch screen optional), easily operation and prolongs service life.
2. most hot air is circulated in the chamber which ensures high heating efficiency and saves energy.
3. Forced ventilation used, adjustable air distributing board in the chamber makes evenly drying of materials.
4. the machine is low noisy, smooth operated, temperature auto controlled and easy for maintenance.
5. widely applied. Suitable for versatile materials and is universal drying machine.
6. Initial and medium effective filter can be added in the air inlet and outlet as requested by customer.

Application:
This drying oven is suitable for the material and for solidification and drying de-watering in the pharmaceutical, chemical, food, farming, aquatic product, light and heavy industry as well as other industries. Such as: raw material medicine, crude drug, prepared herbal medicine of CTM, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc

Technical Data:

 Model

 CT-C-0

  CT-C-I

 CT-C-II

CT-C-IIA

CT-C-III

CT-C-IIIA

CT-C-IV

Drying amount (kg/lot)

60

120

240

240

360

  360

  480

Evaporating area (m2)

7.1

  14.1

28.3

  28.3

  42.4

  42.4

  56.5

Radiation

area(m2)

   15

24

48

48

72

72

96

Used steam (kg/h)

15

20

40

40

60

60

80

Heat power(kw)

6-9

15

30

30

45

45

60

Air vomen of fan (m2/h)

3450

3450

6900

6900

10350

10350

13800

Power of fan(kw)

0.45

0.45

0.45×2

0.45×2

0.45×3

0.45×3

0.45×4

Temperature allowance (°C )

±1

±2

±2

±2

±2

±2

±2

Size(mm)

1380×1200×2000

2260×1200×2000

2260×2200×2000

4280×1200×2270

2260×3200×2000

3240×2200×2000

4280×2200×2270

Baking trolley(set)

1

2

4

4

6

6

8

Baking tray(pc)

24

48

96

96

144

144

192

Weight(kg)

820

1580

1800

1880

2100

2210

2800

Feature



1: this oven is made up of stainless steel



2: this machine meeting iso 9001 and CE certificate



3; this machine can use the steam or electric, the consumer can select one, we also can made the oven can use the two soruce together

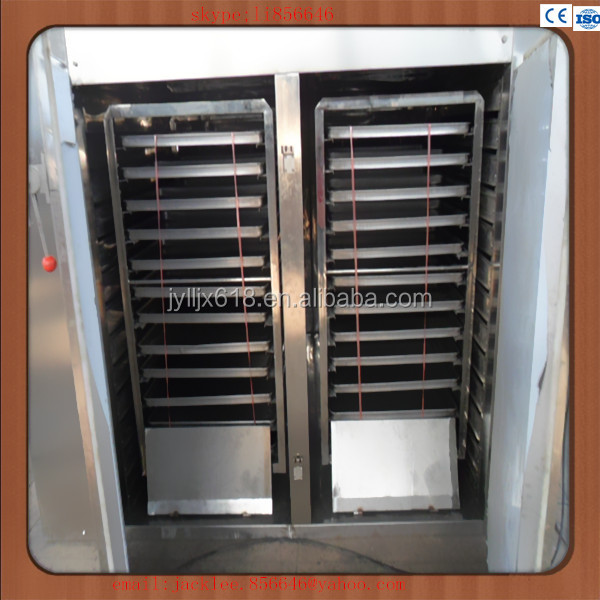

4: match the trays and trolleys, the trolley can movement , in and out



5: match the control panel, the temperature can adjust



6: the voltage: 220V or 380V or as consumer requirement



7: guarantee: 1 year








Packaging & Shipping

   use the wood case as package, shipping : by sea, LCL, FCL
