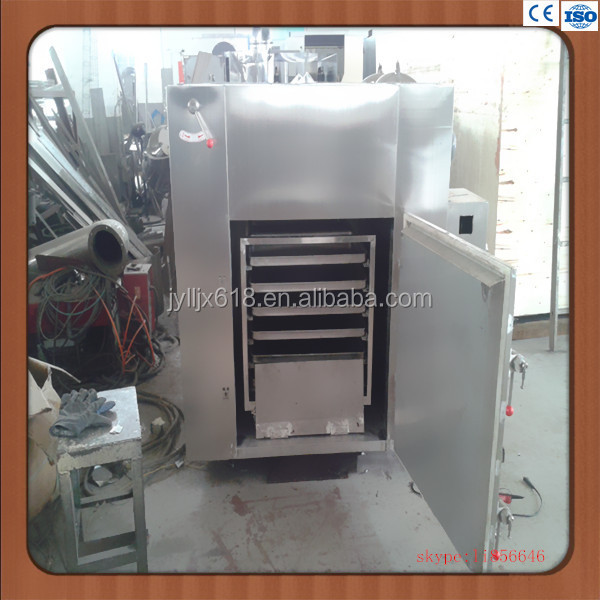

automatic temperature controlled oven

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Tray Dryer
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LINGLING
Model Number:
RXH
Voltage:
380v or 220v or as consumer request
Certification:
iso 9001 and CE
Dimension(L*W*H):
2300X1200X2000mm
Power(W):
15kw
material:
stainlee steel
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
760kg
Warranty:
1 year
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
wood case
Port
Shanghai
Lead Time :
30 days
Product Description



Illustration:

1.  The temperatures to be used: steam heating 50-140°C, Max.150°C

2.  Electric infrared heating: 50-350
3.  Commonly used steam pressure 0.2-08Mpa(2-8kg/cm2)
4.  If the electrical heating and type one, the calculation is 15kw,and the practical use is 5-8kw/h
5.  The special requirements should be indicated at the time of order.
6. The use temperatures more than 140°Cand less than 60°C, should be inducted at the time of order.
7.  The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchangeable.The baking plate dimensions: 460*640*45mm , heating method: steam, electricity, infrared.



Features:

1. controlling cabinet equipped with button(touch screen optional), easily operation and prolongs service life.
2. most hot air is circulated in the chamber which ensures high heating efficiency and saves energy.
3. Forced ventilation used, adjustable air distributing board in the chamber makes evenly drying of materials.
4. the machine is low noisy, smooth operated, temperature auto controlled and easy for maintenance.
5. widely applied. Suitable for versatile materials and is universal drying machine.
6. Initial and medium effective filter can be added in the air inlet and outlet as requested by customer.

Application:
This drying oven is suitable for the material and for solidification and drying de-watering in the pharmaceutical, chemical, food, farming, aquatic product, light and heavy industry as well as other industries. Such as: raw material medicine, crude drug, prepared herbal medicine of CTM, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc

Technical Data:

TypeDrying CapacityPowderConsumedRadiating AreaAir capacityTop and BottomBacking plateOverall Size(LXWΧH)Backing Cart
RXH-5-C25 0.45 53400 0161550X1000X20440
RXH-14-C 500.45 10 10 3400  ±2°c24 1400X1200X2000
 RXH-14-C100 0.451820 3450  ±2°c48 2300X1200X2000
 RXH-27-C200 0.9 36 40 6900  ±2°c96 2300X2200X2000
 RXH-41-C300 1.35 54 80 10350  ±2°c144 2300X3200X2000
 RXH-54-C400 1.8 72 100 13800  ±2°c192 4460X2200X2290



Feature



1: this oven is made up of stainless steel



2: this machine meeting iso 9001 and CE certificate



3; this machine can use the steam or electric, the consumer can select one, we also can made the oven can use the two soruce together



4: match the trays and trolleys, the trolley can movement , in and out



5: match the control panel, the temperature can adjust



6: the voltage: 220V or 380V or as consumer requirement



7: guarantee: 1 year








Packaging & Shipping

 it is used the wood case as package, the shipping: by sea





Our Services

 the machine guarantee one year
