SZG Series Double Cone Rotating Vacuum Mixing Drier

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SZG
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Vacuum Drying Equipment
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
LINGLING
Voltage:
220v or 380v or as consumer reuirement
Certification:
ISO 9001 and CE
Dimension(L*W*H):
2560*1000*2490mm
Power(W):
2kw
Application:
Medicine Processing, Chemicals Processing, Food Processing
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Competitive Price
material:
stainless steel
color:
silver
Weight:
1500kg
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
wood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 To be negotiated
SZG

Main Applications:

It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(eg. biochemistry products in chemical, pharmaceutical and foodstuff indusries).

1.  materials that are easy to oxidize

2.  materials that are easy to volatilize

3.  materials that having strong heat sensitive or toxic

4.  materials that should not destroy its crystal in drying



Principles:

1. heat source pass through the sealed jacket

2. the heat will be transmitted to the raw material to be dried through inner shell

3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized

4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate

5. the solvent will be discharged through vacuum pump

6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time



Technical parameter:

Model

SZG-100

SZG-350

SZG-500

SZG-750

SZG-1000

SZG-1500

SZG-2000

Total volume (L)

100

350

500

750

1000

1500

2000

Loading volume (L)

≤50

≤ 175

≤ 250

≤ 375

≤ 500

≤ 750

≤ 1000

Rotary speed (r/min)

3-13

Motor power (kw)

0.75

1.1

1.5

2

3

3

4

Rotary height (m)

1.75

2.1

2.25

2.49

2.8

2.94

2.99

Tank inner pressure (Mpa)

-0.1-0.15

Clip set pressure (Mpa)

   ≤ 0.3

Working temp.(°C)

Inner tank ≤ 85     Clip set ≤ 140

Heating media

Steam, Hot water, Heat transfer oil

Weight (kg)

800

1100

1200

1500

2800

3300

3600

Floor area (L*W)

2160*800

2260*800

2350*800

2550*1000

2860*1300

3260*1400

3760*1800

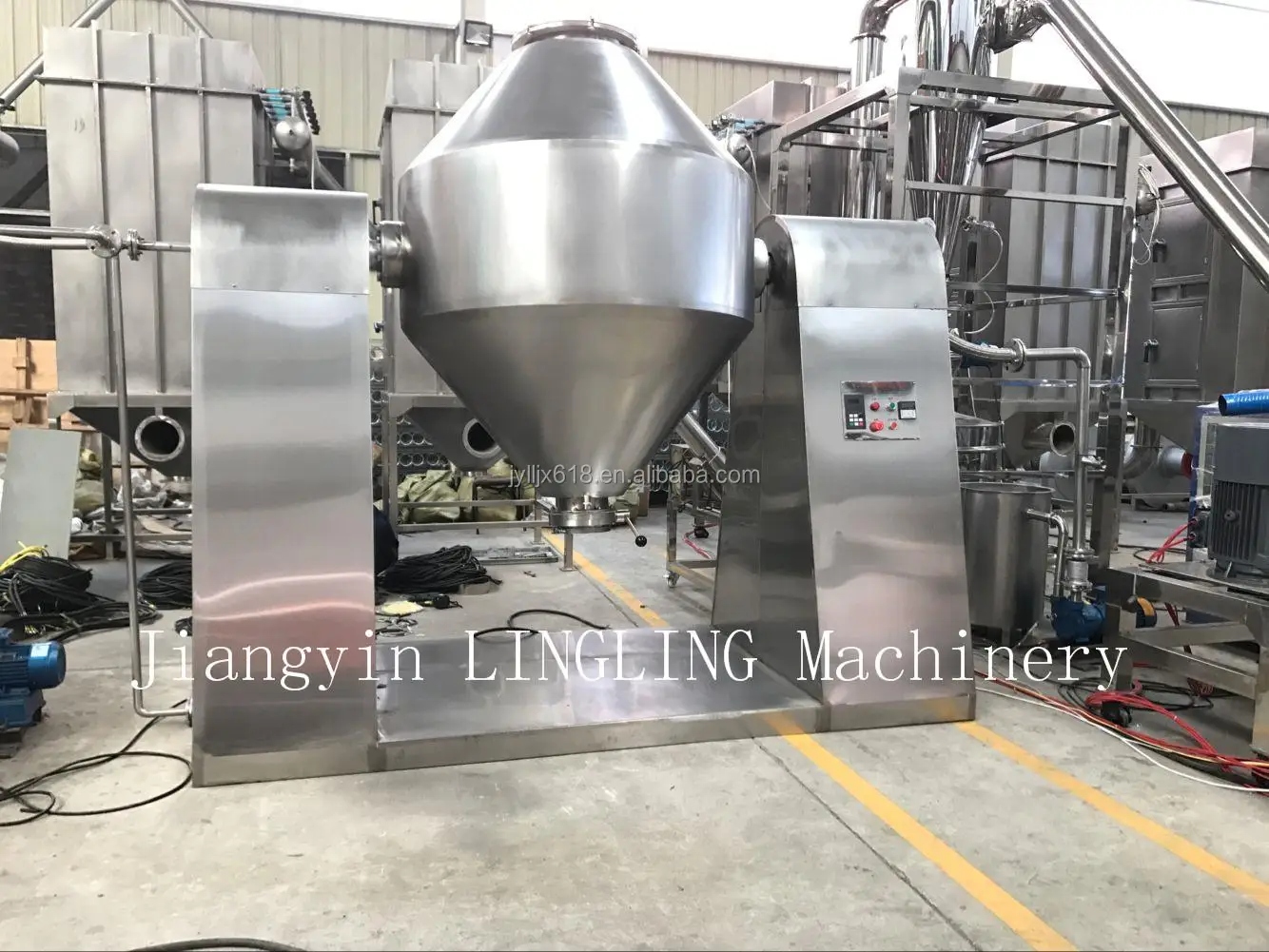

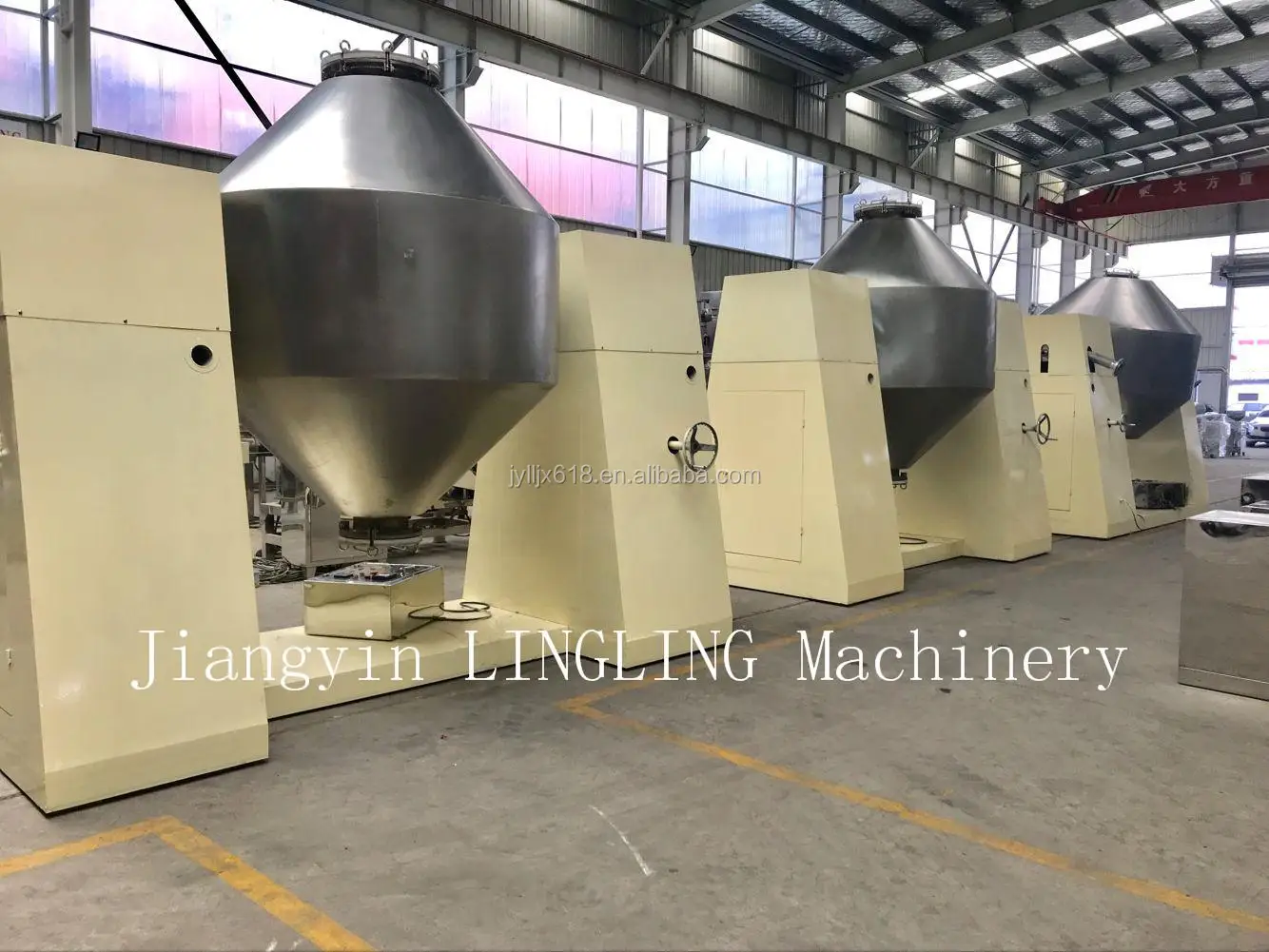

MACHINE PICS:

SZG1SZG3SZG1
