tea leaf grinding machine/ Chinese dried herb grinder

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WFJ-10
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Output (kg/h):
50 - 600 kg/h
Feeding Size (mm):
12
Output Size (mesh):
12 - 200 mesh
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Application:
Medicine Processing, Chemicals Processing, Food Processing
Condition:
New
Type:
Crusher
Product Type:
powder.etc
Place of Origin:
China
Brand Name:
LL brand
Voltage:
220~600V
Dimension(L*W*H):
1400*1050*2050MM
Certification:
iso and 9001
Weight (KG):
760 KG
Range of Spindle Speed(r.p.m):
0 - 4500 r.p.m
Power (kW):
11
Warranty:
one year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Competitive Price
Material:
stainless steel
Power(W):
7.5KW
Weight:
550kg
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 15 To be negotiated



WF PULSE CYCLONE GRI

Main Application:

1. It mainly applies to chemicals,dyes,additives,animal feed,food,medicine,wood,chemical fiber and low in non-metallic minerals such as the hardness of the crushed material processing.

2. The fineness is 20-200mesh(74-840um) with high-yield, grain small degree, low noise, low power consumption, easy maintenance, easy to install, and other advantages, especially suitable for oily, viscous, heat-sensitive, such as fiber and low in hardness of the crushed material processing.



Working Method:

Spindle drive motor and high-speed rotating turbines, tubo-screen with circle on the composition of the broken pieces of grinding, plus mateials from the hopper into the machine in the cavity, the materials in the turbine rotating in the air close to friction and strong. The impact of the turbine blades on the inside, and grinding the leaves and pieces of gap between the ground again.



WHY CHOOSE YOU?



1; it is made up of stainless steel( we also can do as consumer requirement)



2: this machine meeting iso 9001 and SGS certificate



3: this machine match the turbine blade, it is also can match other different blade( if consumer need, we can design. so the consumer can change different blade to use)



4:this machine can add the water cooling system( as consumer requirement)



5: this machine can add the magnetic, to remove the  Metal impurity( as consumer requirement)



6;this machine is automatic discharging, no need hand to control



7: this machine match the general dust absorption system, it also can match the pulse dust absorption system



8: guarantee: 1 year



9: payment: 30% TT in advance, 70% need to pay us before deliver the goods



10: deliver time: 30 days





Technical Data:

Model

WLF-200

WLF-300

WLF-400

WLF-500

Production capacity (kg/h)

60-100



80-300



100-400

120~500

Spindle speed(r/min)

4500

3500

3400

2900

Feed size (mm)

<6

<10

<12

<12

Crushing size(mesh)

20-120

20-120

20-120

20-120

Crushing motor (Kw)

4

7.5

11

22

Draught fan (Kw)

2.2

2.2

2.2

2.2

discharging motor (Kw)

0.75

0.75

0.75

0.75





 The above is our technical data. We can also design and manufacture different standars upon customer’s request.

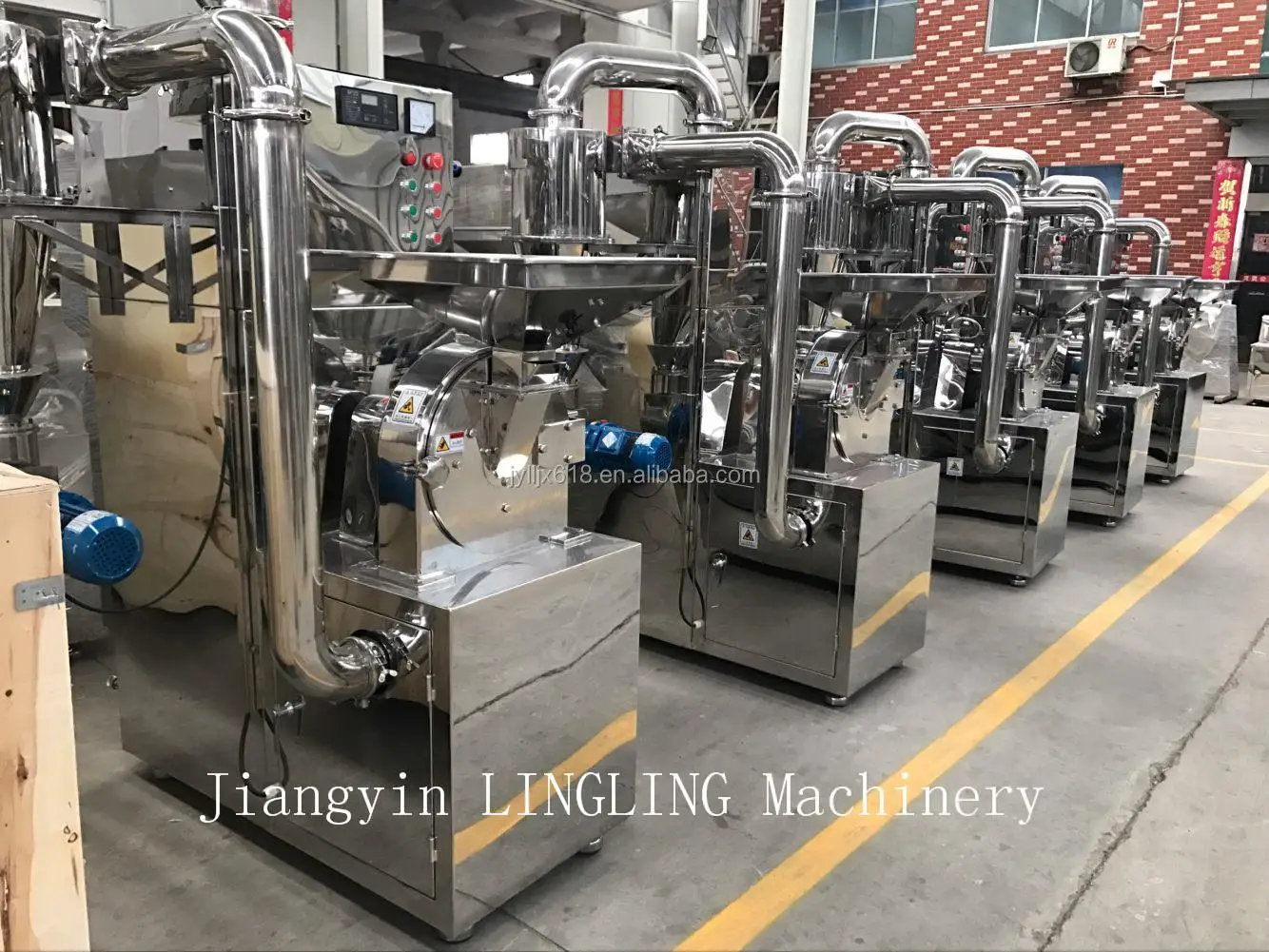

MACHINE REAL VIEW:
