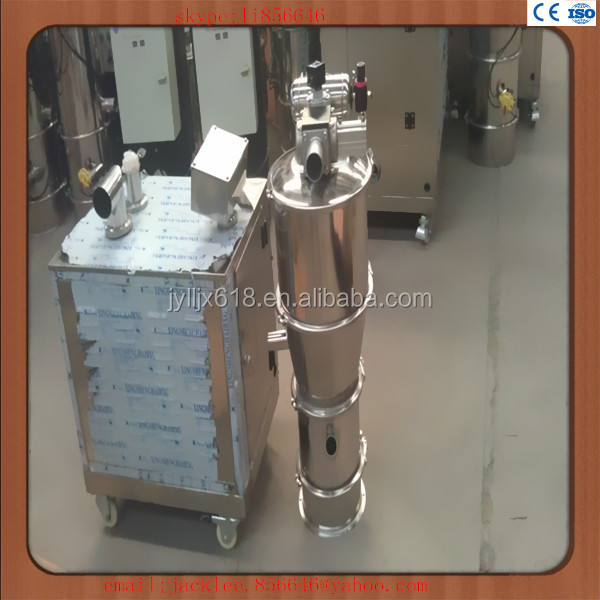

Pneumatic Vacuum Feeder conveyor

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LINGLING
Model Number:
ZKS
Material:
Stainless Steel
Voltage:
380v or 220v or as consumer request
Material Feature:
Heat Resistant
Certification:
iso 9001 certificate
Structure:
Conveyor System
Type:
vacuum conveyor
Load Capacity:
500kg
Dimension(L*W*H):
dia:213*720mm
Power(W):
depends on model
material:
stainless steel
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
Compression film packaging or Conventional shipping packaging or According to customers' needs
Port
Shanghai
Lead Time :
15 days



Product Description



Specifications

Compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more ch

Vacuum Conveyor is developed for flexible bulk/powder conveying.

1. Advantage:

Compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more flexible, more clean.

2. Working principle:

First the vacuum is generated in the air injection pump, and powder material is sucked in the conveyor tank, the powder is separated from the air by the filter and stay in the conveyor tank, when the tank is full filled, the pump stop and discharge valve is opened for powder material discharge. All the process is controlled by the controller.

3. Features:

  • Vacuum conveying in close pipeline, no leakage, no cross contamination.
  • Low energy consumption
  • Well static electricity elimination.
  • Ex-provffe type as an option
  • Easy to install and cleaning
  • In accordance with GMP
  • Made of ANSI 304/316L Stainless Steel

4. Applications:

  • Pharmaceutical industry: tablet, granulate, capsule, pills
  • Food industry: additive, surge, coffee, milk powder, flakes, pasta
  • Chemical industry: plastic particles, dye material, rubber powder, organic bulk material......
  • Other industry: small parts, mineral powder, herbs......

Model

Coveying capacity(kg/h)

Air consumption

(L/min)

Gas pressure

Mpa

Overall size

ZKS-1

350

180

0.4-0.6

Φ140*560

ZKS-2

700

360

0.4-0.6

Φ213×720

ZKS-3

1500

720

0.4-0.6

Φ290×850

ZKS-4

3000

1440

0.4-0.6

Φ420*1150

ZKS-5

6000

2880

0.4-0.6

Φ420*1150

ZKS-6

9000

4320

0.4-0.6

Φ420*1350






Packaging & Shipping



use the wood case as package, shipping : by sea, LCL, FCL



Our Services



the machine guarantee one year, technical service all life, 24 hotline service
