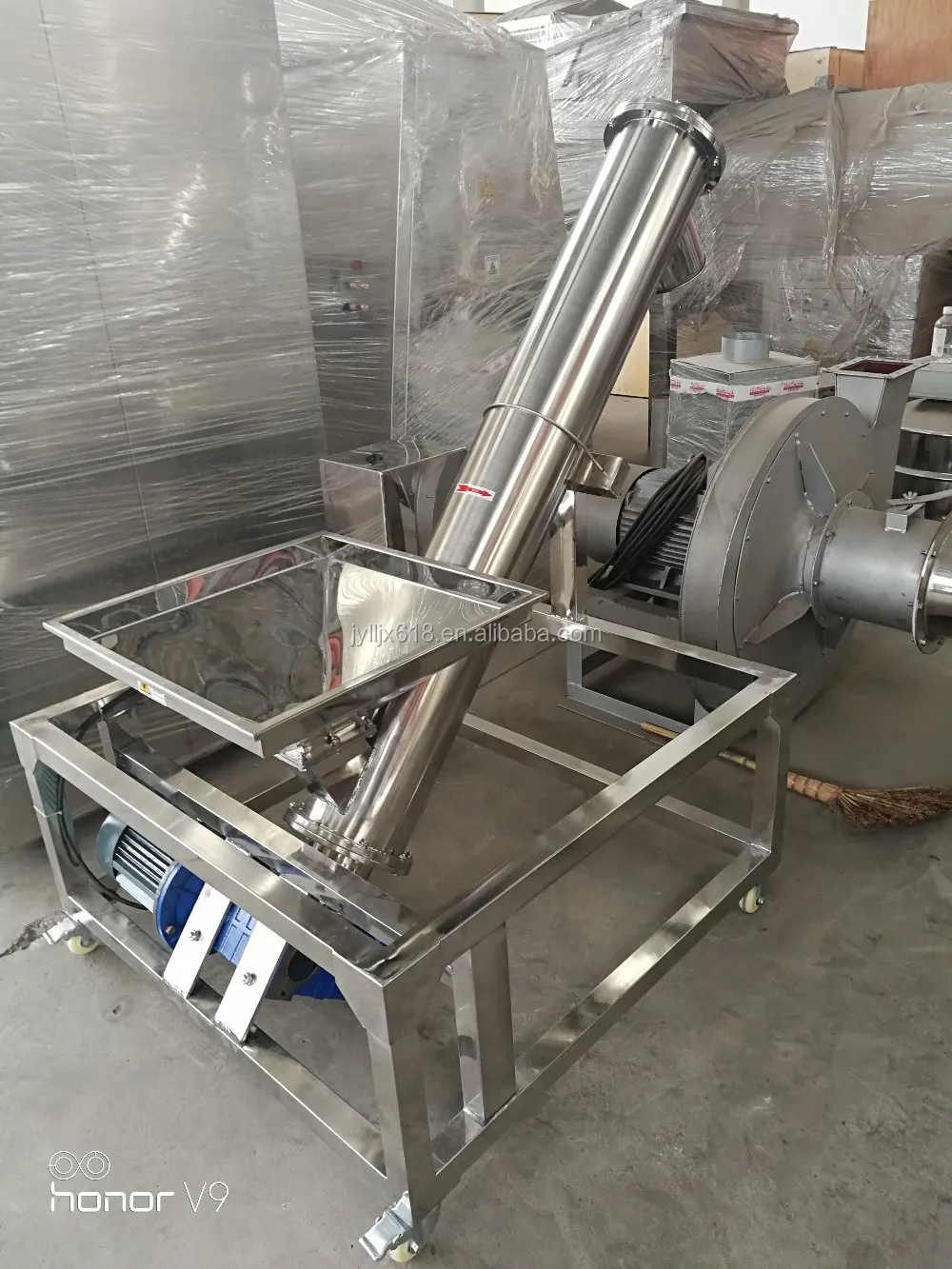

Food Grade Stainless Steel Spiral Conveyer

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Screw Conveyor
Load Capacity:
depends on model
Model Number:
LS
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
LINGLING
Material:
Stainless Steel
Voltage:
110v~415v
Material Feature:
Heat Resistant
Certification:
ISO 9001 certificate
Structure:
Conveyor System
Dimension(L*W*H):
depends on model
Power(W):
depends on model
material:
stainless steel
Supply Ability
Supply Ability:
2 Set/Sets per Month
Packaging & Delivery
Packaging Details
woodcase
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 60 To be negotiated
Product Description



1.Inlets and outlets can be configured as required.

2.Totally-enclosed structure without causing any environmental pollution.

3.Continuous feeding can be realized whether horizontally or in a large inclined angle.

4.Using multiple inlet and discharge points to achieve efficiently distributes bulk materials to various locations.

5.Driving units adopt gear reducer, with large torque, low noise, no oil seepage and long life time.

Technical Parameter
LS model 10016020025031540050063080010001250
Screw dia. (mm)10016020025031540050063080010001250
Pitch of screw (mm)100160200250315355400450500560630
Speed (r/min)1401121009080716350403225
Output (m3/h)2.271322316298140200280380
Speed (r/min)11290807163565040322520
Output (m3/h)1.761018244978112160220306
Speed (r/min)9071635650454032252016
Output (m3/h)1.4581419396290126176245
Speed (r/min)7150504540363225201613
Output (m3/h)1.13.16.21115.4315077102140198

Powder auger conveyor / Screw conveying machine / Spiral conveying equipment
